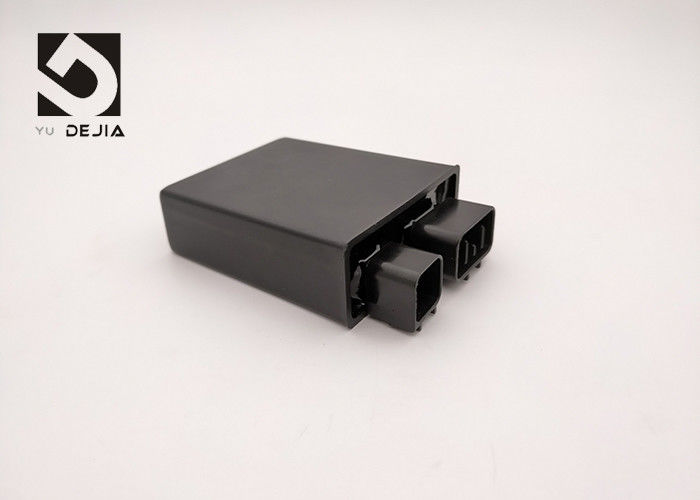

Yamaha FZ16 Contactless DC Cdi Unit 12 Pin Stable Igniiton 21C-H5540-00

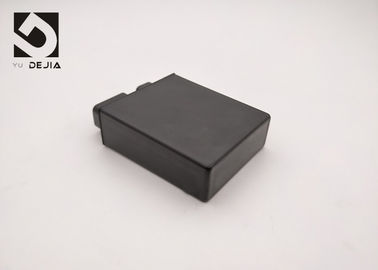

Stable Igniiton DC 12 Pin Motorcycle For Yamaha FZ16 CDI UNIT 21C-H5540-00

how cdis work

principle of a motorcycle ignition is that the ignition and the sensor work together to determine the spark plug sparking moment,Also called the ignition time, when the high voltage package to supply spark ignition plug ignition, spark ignition fuel and air mixture will cause an explosion, promote the piston in the cylinder up and down movement, so as to start the motorcycle engine.

skills requirement
1. Product shape installation and interface size shown in Figure 1
2. Ignition Specifications:
① ignition: capacitive discharge contactless magneto ignition device, that CDI;
② temperature: -20 ℃ ~ 65 ℃;
③ storage temperature: -30 ℃ ~ 80 ℃;
3. Voltage working range: 9 ~ 16V
4 general performance:
① minimum continuous ignition speed: ≤ 200r / min (three-pin 6mm)
② continuous ignition speed range: ≤ 200r / min ~ 11000r / min (three-pin 6mm)
③ ignition range of 2000 ~ 6000rpm
④ quiescent current: <50mA (supply voltage: 14.5% p0.5V)
⑤ dynamic current:
1500r / min: <250mA 8000r / min: <500mA (supply voltage: 14.5% p0.5V)

Our services

A- 1 year warranty
Product 1 year replacement, does not include man-made damage

B- 1-2% Free Spare Parts

C- OEM & ODM are welcome

D- Trial orders are available

E- sample can be supplied in 5-8 days

F-packing design service, trial order, retail service, 24 hours phone service and customized service.

G-Certificate: ISO9001:2008

Motorcycle cdi composition

1, power supply: battery and generator. Starting, the ignition system by the battery to provide low-voltage electrical energy; start, when the generator voltage is higher than the battery voltage, the ignition system by the generator to provide low-voltage electrical energy.
2, ignition coil: the car power supply 12V low-voltage electrical conversion into the spark plug electrode gap high voltage.
3, Distributor: In the generator camshaft driven, on time and cut off the ignition coil primary current, the ignition coil in time to produce high-voltage, and according to the ignition order will be sent to the high-pressure spark plug each cylinder; at the same time can automatically and Artificially achieved on the ignition timing adjustment. One of the role of the capacitor is to reduce the spark contact breaker to improve the ignition coil secondary voltage.
4, the ignition switch: control the low-voltage ignition circuit off, control the generator start and turn off.
5, spark plug: the high-voltage electricity into the combustion chamber, spark ignition spark mixture.
6, additional resistance short-circuit device: additional resistance will be shorted when starting, increase the ignition coil primary current, enhance the starting spark plug spark energy.
